Clamp-in Metal Valve Moiblephone Pogram TPMS OE Replacement Sensor
Clamp-in Metal Valve Moiblephone Pogram TPMS OE Replacement Sensor
Clamp-in Metal Valve Moiblephone Pogram TPMS OE Replacement Sensor

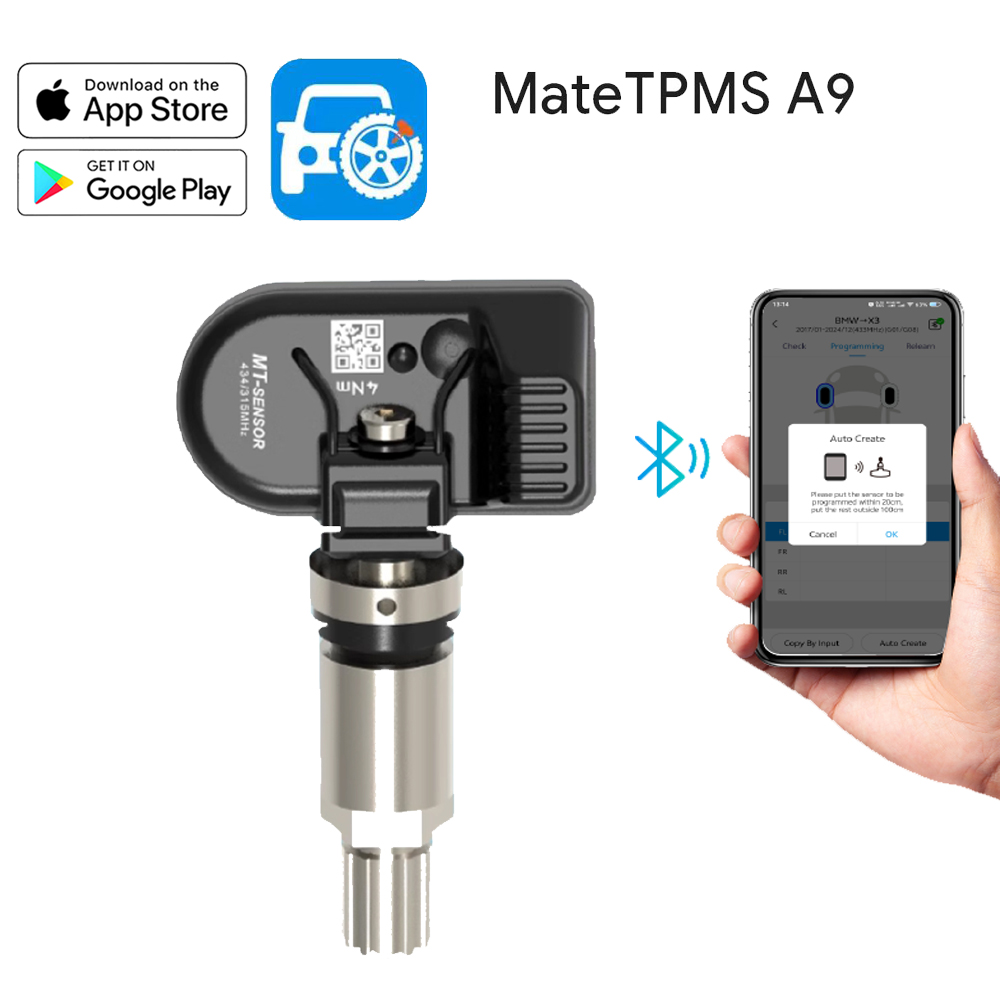

1. MT-SENSOR is a universal programmable sensor that integrated 315Mhz and 433Mhz in 1 sensor.

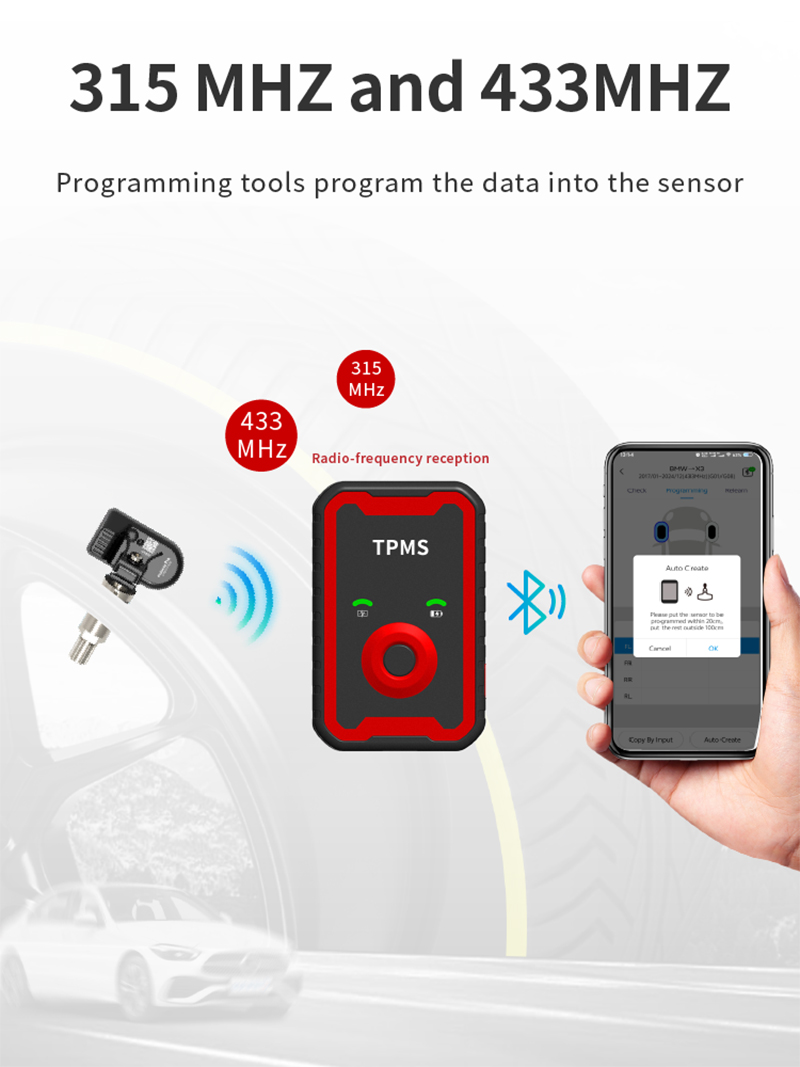

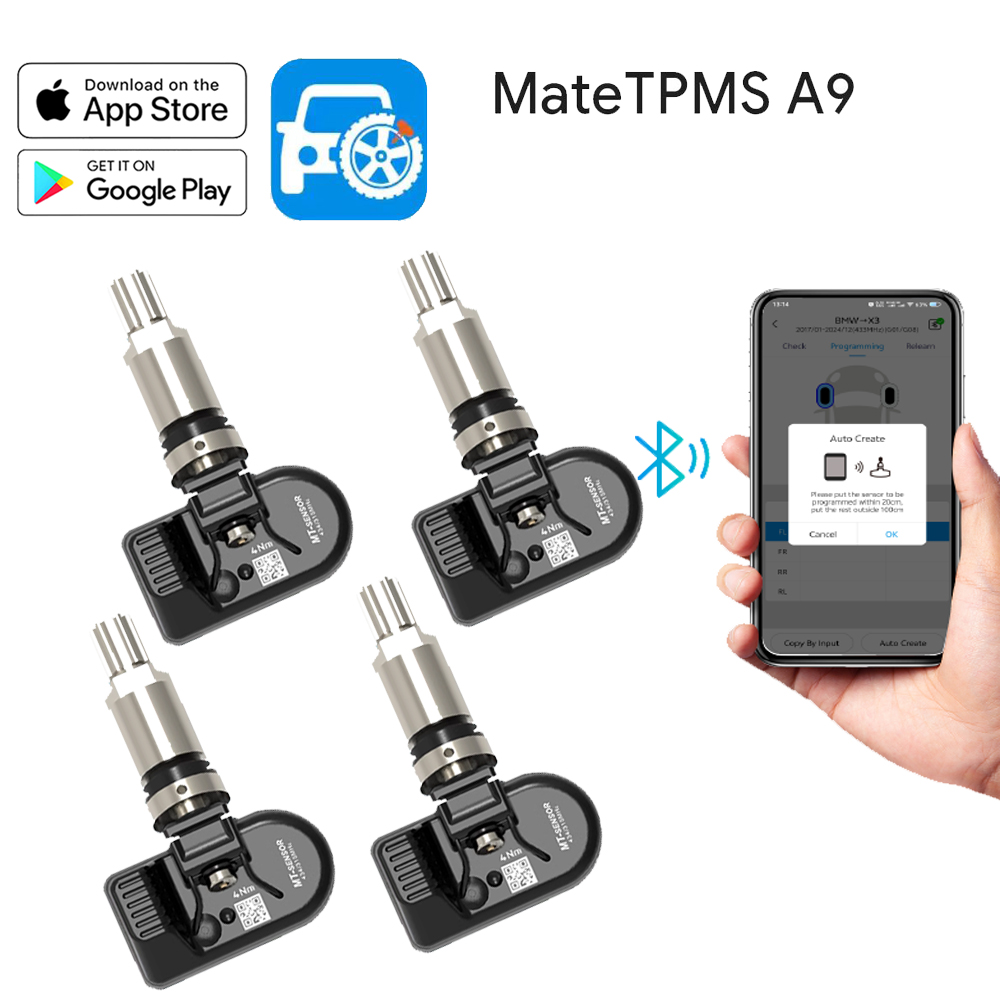

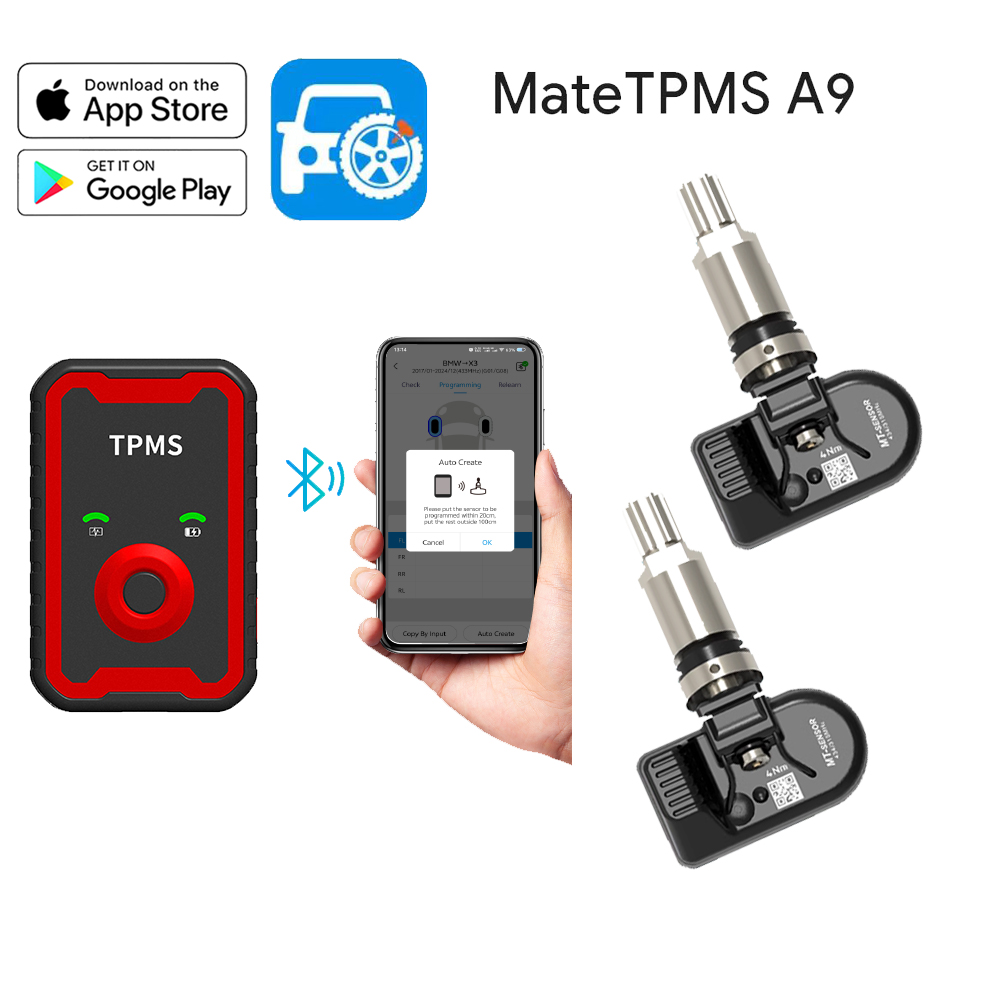

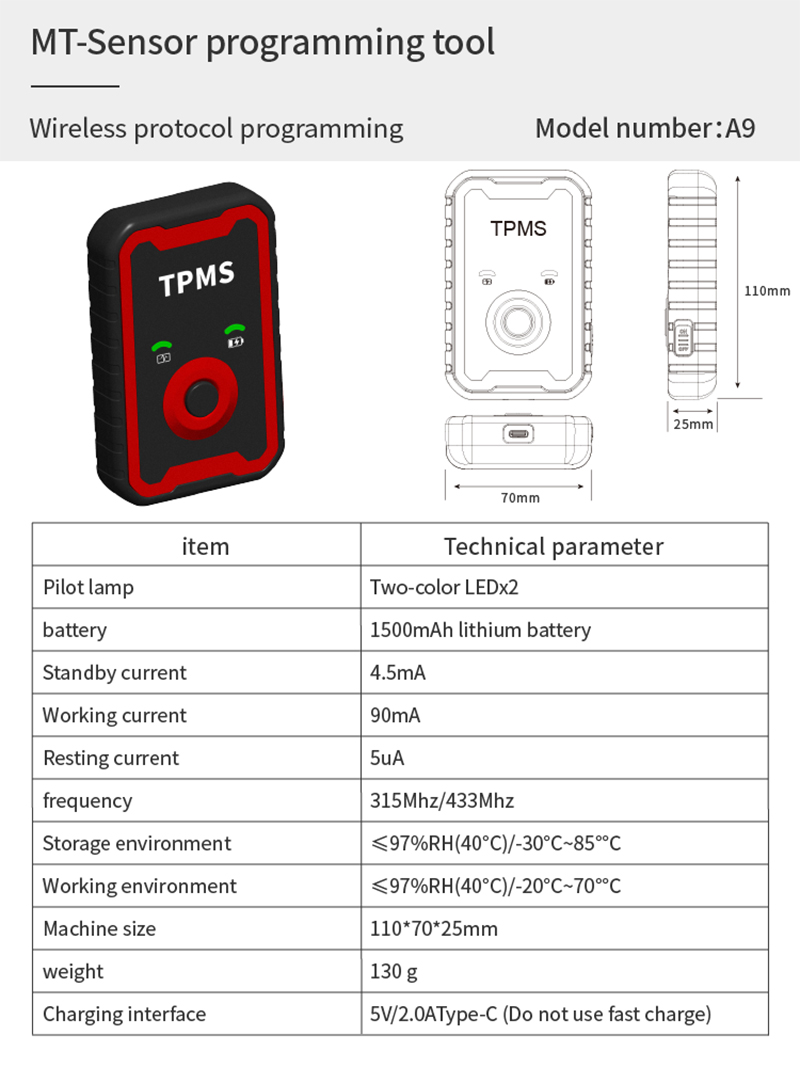

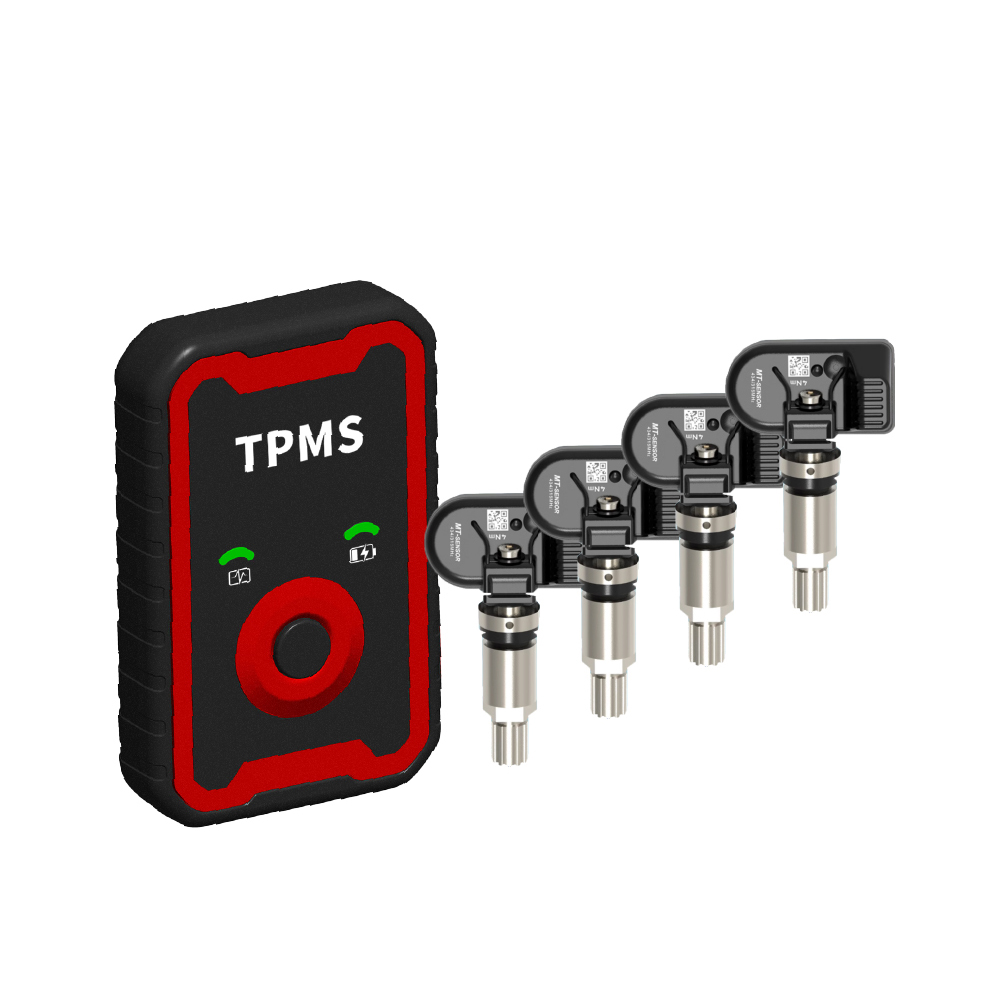

2. Work with MATETPMS A9 Mobile Programming Tool. I

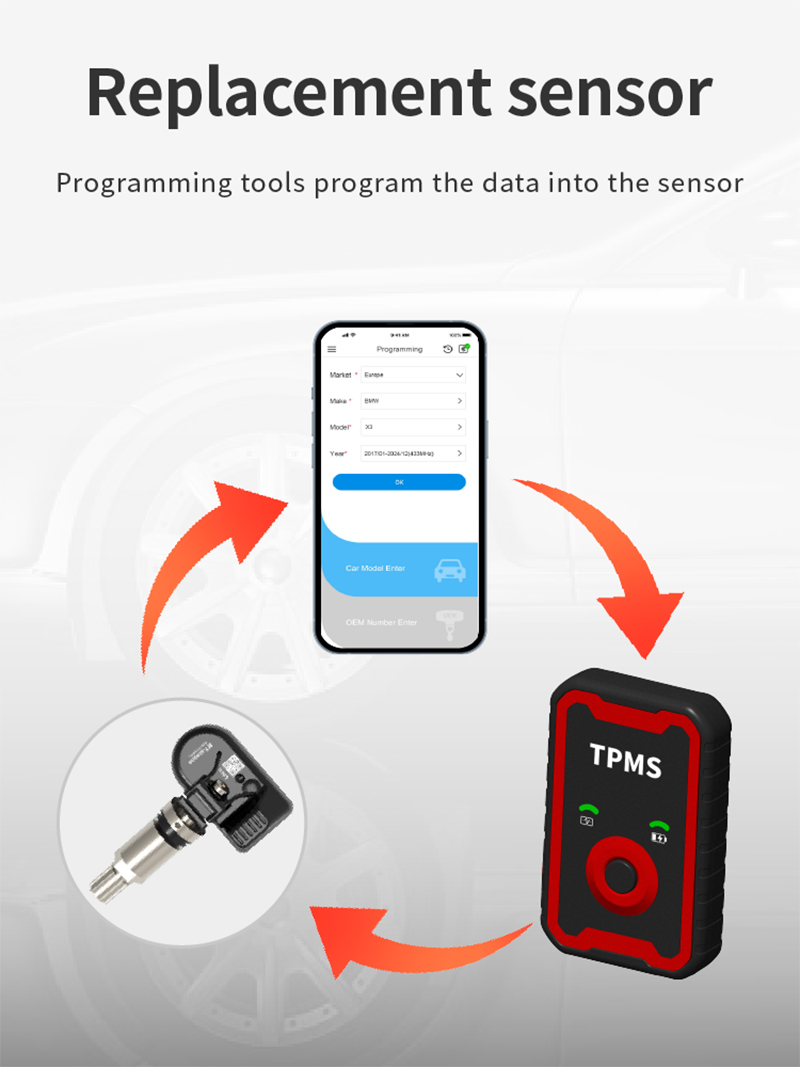

3.Works for OE TPMS sensor replacement in the aftermarket after OE sensor battery dead or OE sensor damaged.
4. Supports for 98% car protocols from Aisa, North America and Europe.
5. Metal valve and rubber valve available for choice.
6. Imported IC is from oversea market. Battery is CR2050 which can works for more than 5 years with 4 hours daily driving.
7. Waterproof rate is IP67.

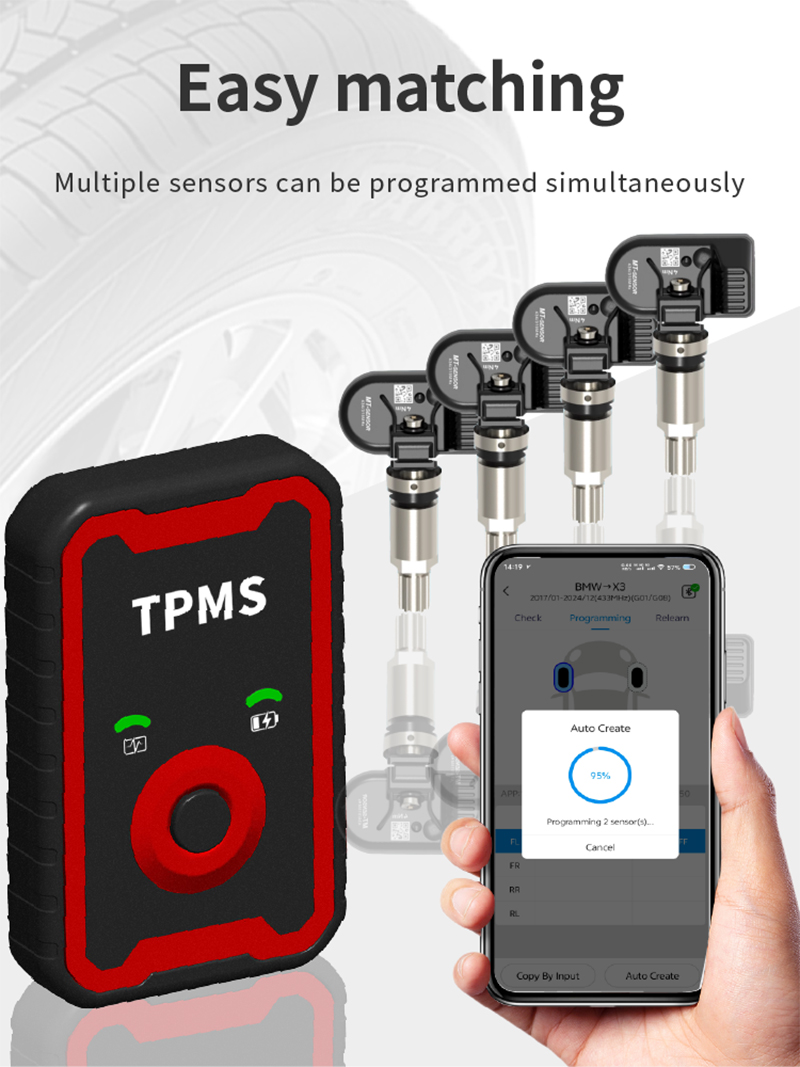

8. Support unlimited programming.
Features
Imported IC and battery for 5 years life-time.
Canbe programmed by mobile phone with bluetooth programmer

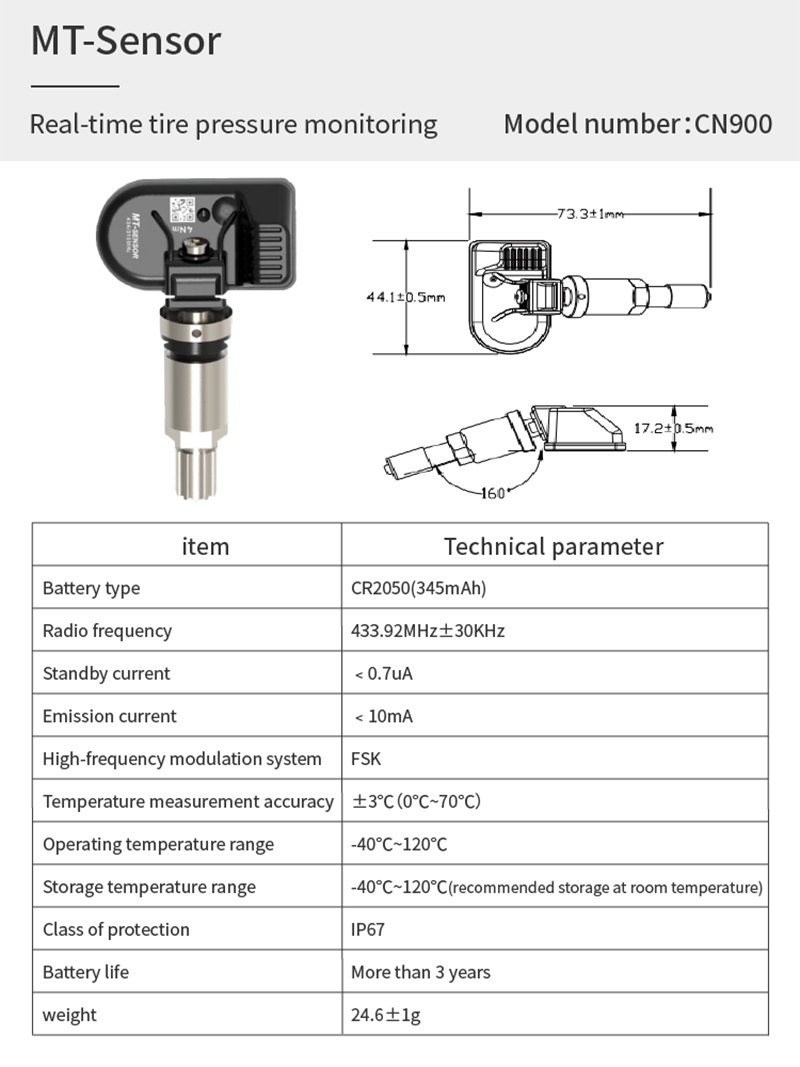

Product Parameter
| Operating temperature | -40 ° C~+125 ° C |
| Relative humidity | 45%~95% |
| Storage temperature range | -40 ° C ~+125 ° C |
| Working temperature | -40ºC~105ºC |
| Pressure range | 0-900Kpa |
| Installation position | automobile wheel hub |
| Quiescent current | 0.3μA≤I≤1.0μA |
| Emission current | 1.0mA ≤I≤3.5mA |
| Operating voltage | 2.90V≤U≤3.50V |
| Emission power | 8dBm |
| Weight | 35g |
| Service life | CR2050 more than 3 years |
| Waterproofing rate | IP67 |
| Transmitting power | <10dBm |
| Transmitting frequency | 433.92MHz&315MHz |
| Temperature error | 20~70 ° C : ±3 ° C, -40~-20ºC,70~125ºC :±5ºC |
| Pressure error | 0 ~50ºC :± 0.07bar, -40~0ºC , 50~85ºC :± 0.1bar |
Features
| (1) 315 & 433MHz 2 in 1 Sensor, dual Frequency |
| (2) 98% car models coverage |
| (3) 1 SKU solutions, no need to store hundreds of OE sensors |
| (4) Metal & Rubber valve freely interchanged with international patent |
| (5) Sensor Valve is adjustable, 0–40°, meets almost all wheels |
| (6) Duplicate ID , Automatic Create ID and Manual Input ID available for choice |

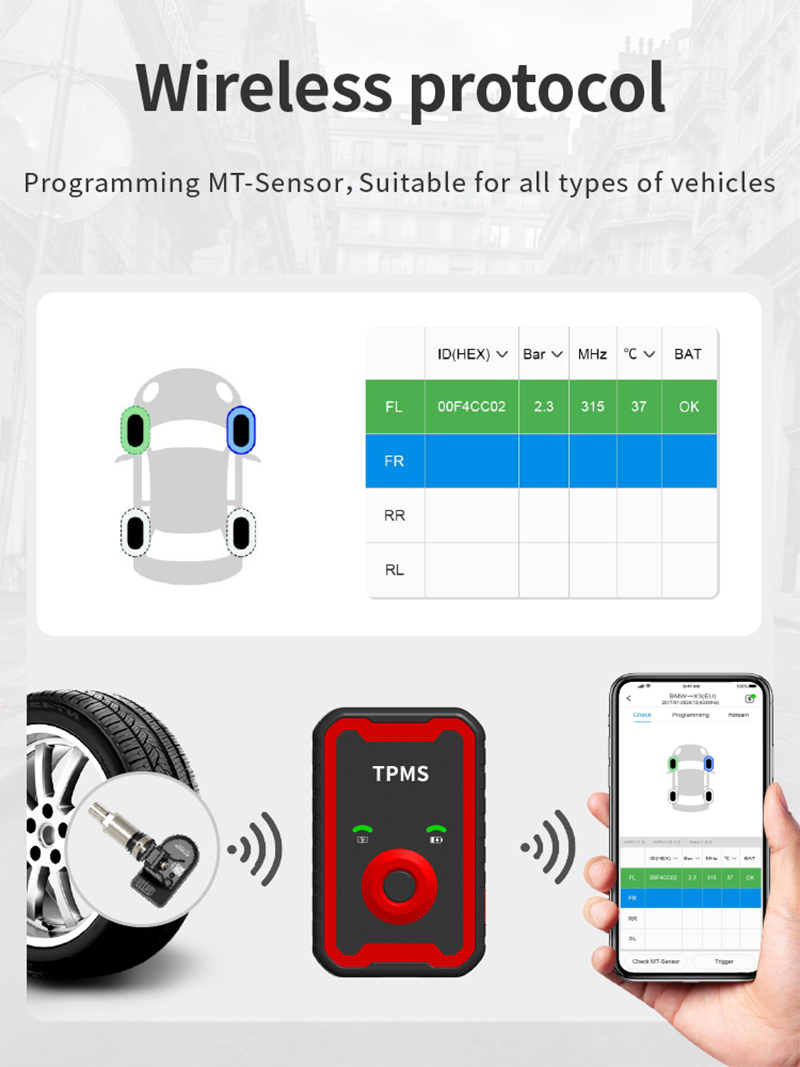

| (7) Wireless program, no limited programming |
| (8)Strict Quality Control to meet quality of OE sensor, Warranty 2 years |
Company Profile
Shenzhen June Electronic Co., Ltd. is special in car accessary development. Including tpms and parking sensors. Especially in tire pressure diagnosis tools, programmers and universal programmable tpms sensors for the OE and aftermarket for years. We doing our best to offer the the most stable product for customers over the world.
