433Mhz Tire Pressure Monitoring System Car CAN BUS TPMS Kit High Precision

433Mhz Tire Pressure Monitoring System Car CAN-BUS TPMS Kit

To ensure the safety and efficiency of the driving, every passanger cars need to install tire pressure monitoring system before leaving factory.

It must be installed TPMS in United States and Europe at first. They have laws to force car factory to install TPMS system in factory.

As the developing of international car industry, cars from China has to be install tpms in factory, too in 2019. This canbus tpms system directly

communicate datas with car canbus system. It can provide real-time monitoring of pressure and temperature direclty on dashboard and center

console screen. And usually is sold to car factory for the car models that do not sell on the market.

It also need the factory have strong developing ability of the products about tpms and dashboard.

Key Benefits

• Real-Time Alerts: The system detects significant pressure drops (typically 25% below recommended levels) and notifies you through sound alarms and LCD display warnings, helping prevent accidents and maintain vehicle performance.
• Enhanced Safety: By alerting you to low pressure, leaks, or punctures, the TPMS reduces the risk of tire blowouts.
• Fuel Efficiency & Tire Longevity: Properly maintained tire pressure improves fuel economy and extends tire lifespan.
• Dashboard and center console screen display: The tire pressure and temperature will be displayed on dashboard and conter console sceen

System Types

Internal Direct TPMS: Sensors are installed inside each tire, offering the most accurate readings.

Usage Instructions

When the dashboard or center console screen alerts you to a pressure issue, immediately check your tires at a service station to ensure safe driving.

Features

• Internal sensors with 5 years lifespan
• 433Mhz frequncy
• Fast Date update within 4s
• Pressure range: 0-8Bar / 0-116PSI
• Sensor preset in factory
• Self-testing for each power on
• End users can set the threshold of tire pressure
• Convertible pressure unit (PSI / Bar)
• Sleeping mode available, Built-in G-sensor, can be wake up immediately when the car is moving
• Display with visual and audible warning for tire pressure and temperature
• From the car stop to start, Sensor can be wake up in 5s
• Visual and audible warning for tire pressure and temperature from car dashboard and center console screen

Technique Specification for Sensor

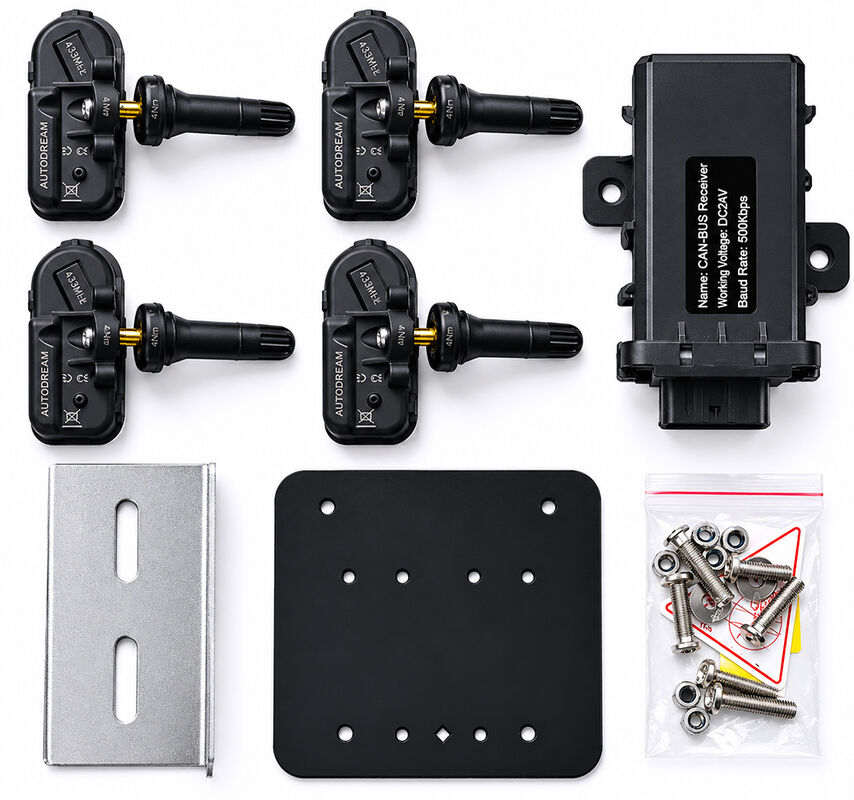

Part detail

FAQ

Q1: What is the frequency and application?

A1: Sensor frequency is 433Mhz. It used for aftermaket.

Q2: What's your package?
A2: Our standard package is carton for 20 sets. Gross wight is 11KG.

Q3: What is your MOQ?
A3: 100 sets.Sample is available.

Q4: Do you offer OEM and ODM service?
A4: Yes, OEM and ODM service available.

Q5: When is the lead time?
A5:1-10 working days upon your order of products.

Q6: What about quality warranty?
A6: 1 year.

Q7: What is Price Term?
A7: EXW. FOB Shenzhen, CIF accepted.

Q8: How about Payment Term?
A8: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.

Q9: What about shipment?
A9: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea

Q10: After-sales and Refund Policy?
A10: If there is any fault items, pls kindly send us proof, such as photo or video. We will try our best to solve this online first. If still cannot solve, pls send this back to us for repair. The new one will be send to you after problem confirmed.
