Waterproof Automotive Rear Bumper Wehicle Park Sensor Backup Reversing Parking Radar

Auto Automotive Rear Bumper Wehicle Park Sensor Backup Reversing Parking Radar

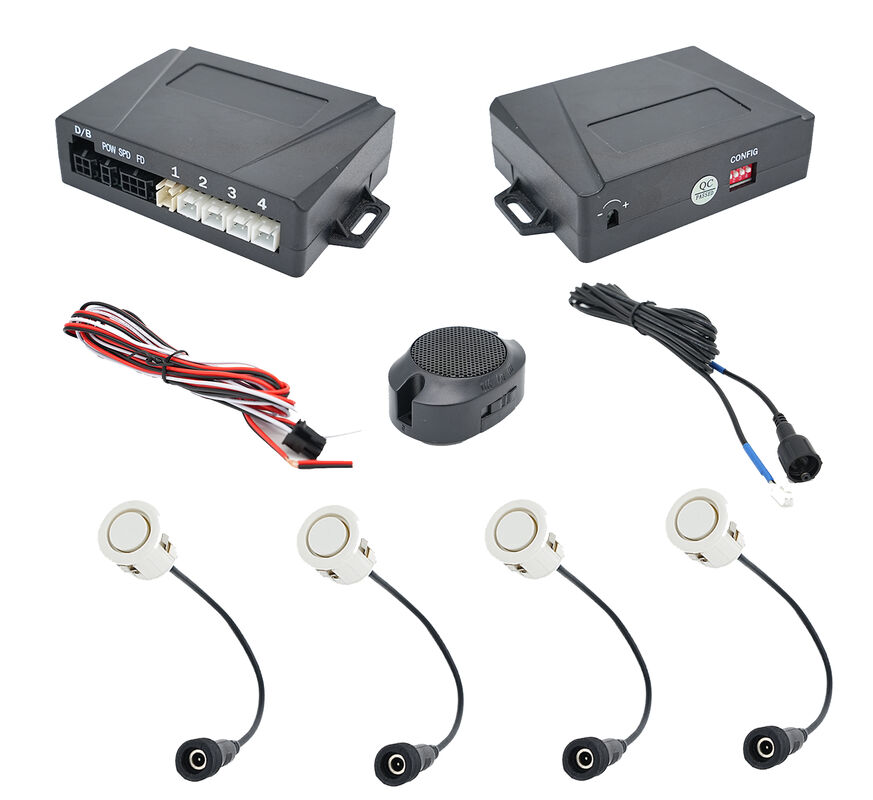

This universal ultrasonic parking sensor system is designed for all aftermarket vehicles. It provids reliable parking assistance solution

for both front and rear installation. It helps drivers accurately detect obstacles while reversing or moving forward, improving overall

driving safety.

The parking sensor system activates an audible buzzer warning when an object is detected within 30cm, with the beep frequency

increasing as the vehicle gets closer. Once the distance reaches the closest range, a continuous alarm sound is triggered to

ensure maximum safety awareness.

The buzzer also features adjustable volume control and a mute function via an easy on/off switch. Equipped with 4 high-precision

ultrasonic sensors, this parking reverse sensor kit can be installed on either the front or rear bumper.

For full vehicle coverage, two kits can be used to support both front and rear parking assistance.

It also includes smart configuration features such as side sensor distance limitation, allowing users to reduce false alerts by setting

detection range to 80cm.

 In addition, this parking aid reversing system can be adjusted via dip switches to ignore obstacles like spare tires or tow bars, ensuring

more accurate and reliable parking detection in real-world conditions.

Features

• Front sensor system
• Rear sensor system
• Speed mode and brake mode front activation
• Side sensor limitation to 80cm
• 25cm offset for towbar and spare tire
• buzzer sound is adjusted by control box
• buzzer and LED display alarm can be optional
• IP67 waterproof rate
• Thick pin socket with 15KG pull force. It's much stable.
• Sensitivity can be adjusted freely.
• Install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle for side sensors.

Parameter

Detail function

1. Dip swtich to choose front or rear reversing system, speed or brake mode for front sensor system, side limitation to 80cm distance detection

and buzzer volume adjusted.

2. Speed mode or Brake mode choice for dips switch to adjust.

3. side sensor detection distance setting by dip switch.

4. Standalone buzzer sound can be adjusted to high volume 2400Hz and normal 800Hz.

5.Speaker, LED display and buzzer optional for choice

6.16.5mm sensor opitional for choice. You can choose the sensor head you prefer. Other parts are same.

Package
Neutral Package: White box
QTY: 24 SETS .
N.W.:10.0 KGS .
G.W.: 12.8 KGS .
Volume:0.040m³
Shipping:DHL, UPS, FedEx, EMS Express available; Air and Sea shipment available.
