| Place of Origin: | Guangdong, China |
| Brand Name: | OEM |
| Certification: | CE, RoHS |
| Model Number: | HV01-8S1 |

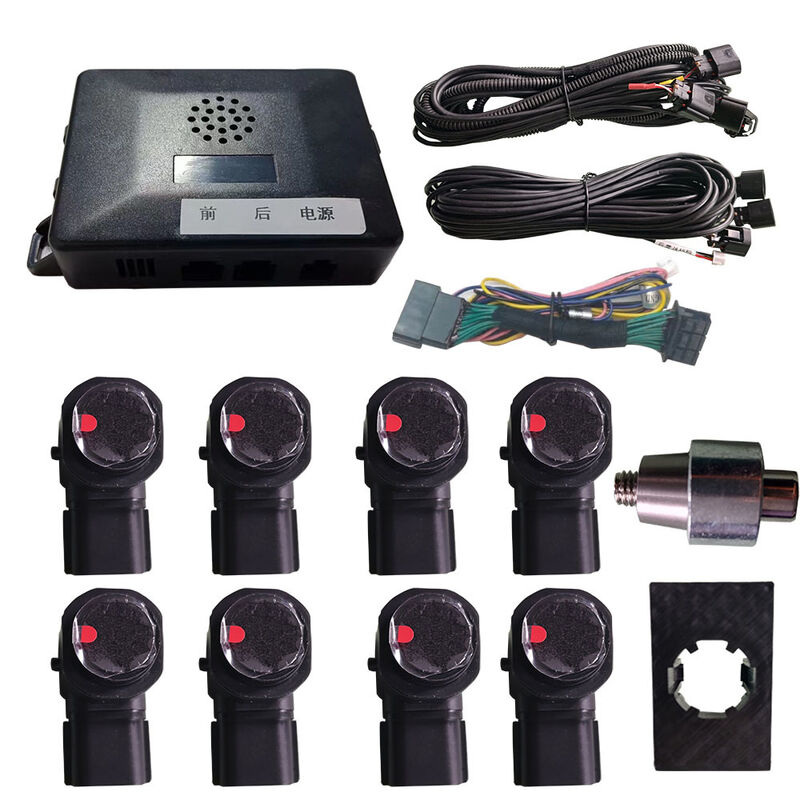

This premium distance control radar park assist aid system is specially designed for Toyota and Honda models. It uses ultrasonic sound waves to detect objects near your vehicle, delivering both audio and visual alerts to help prevent dents and bumper damage while parking. The kit is plug-and-play with your original car dashboard and center screen.
Distance data can be displayed on both the dashboard and the original center console screen for the front and rear. This backup sensor system is intended only for low-level vehicles that do not already have a factory parking sensor system.
| Model | HV01-8S1 |
|---|---|
| Sensor Diameter | 16.5 mm |
| Sensor Type | Flush mount digital sensor |
| Working Principle | Ultrasonic |
| Technic Type | Ultrasonic |
| Brand | OEM |
| Function | Car reversing parking sensor system |
| Harness | 6.6 m front sensor harness; 8.6 m rear sensor cable |
| Display | Original screen or dashboard |
| CANbus | CAN Low and CAN High supported |
| Warning | Buzzer |
| Certification | CE, RoHS |
| Operating Temperature | -20°C to +80°C |
| Buzzer Sound Alarm | Original car buzzer alarm or buzzer built into control box |
| Package | Neutral package |
| HS Code | 8512301900 |
| Packing Size | 41 × 39 × 48 cm |
| Gross Weight | 16 kg/carton; 10 sets/carton |
| 2019–2023 Corolla 1.2T | Instrument |
|---|---|
| 2023 Corolla Hybrid / 2023 Corolla 1.5TL | Instrument / original screen |
| 2023 Corolla Cross | Instrument / original screen |
| 2022 Corolla Cross | Instrument |
| 2016–2018 RAV4 | Original screen |
| 2019–2024 RAV4 | Instrument |
| 2019–2023 Avalon | Instrument |
| 2021–2023 Crown Kluger | Instrument |
| 2018–2023 Izoa | Instrument |
| 2023 Frontlander | Instrument / original screen (screen required for further check) |
| 2019–2023 Camry | Instrument |
| 2024 Camry | Instrument |
| 2018–2023 CHR | Instrument |
| 2015–2021 Highlander | Original screen |
| 2022–2023 Highlander | Instrument |
| Prado | Original screen |
| Land Cruiser LC300 | Instrument / original screen |
| More models | Please contact customer service |
OEM and ODM services are available. Contact us for more details.
OEM and ODM service are available. Contact our customer service team for more details and model compatibility confirmation.
