No false alarm 0.15s fast detection response smart parking Front/Rear sensor

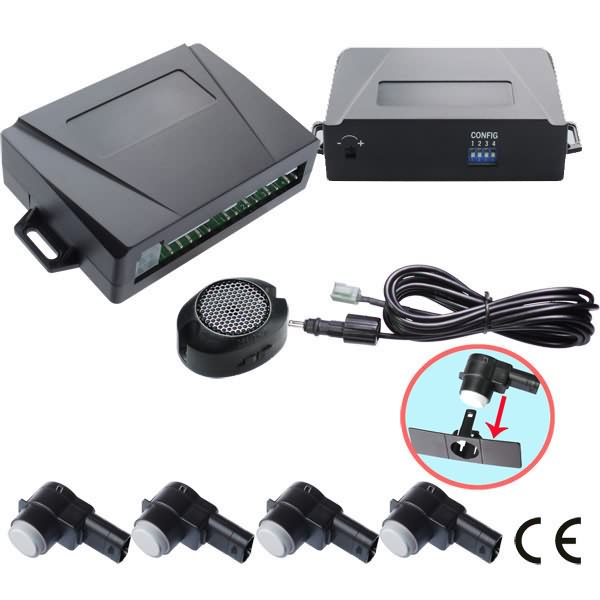

front rear sensor DS1A

No false alarm 0.15s fast detection response smart parking Front/Rear sensor

Category: .

No false alarm 0.15s fast detection response smart parking Front/Rear sensor

How does Front/Rear sensor system work?

Once installed, sensor will automatically activate when in reverse gear. Speaker will emit an audiable tone

after self-diagnosis check. If there is an obstacle with 2.4m, the LED display will light up and hidden speaker will

beep as vehicles approached.

Key Features

  • Button on display, you can choose to turn on/off buzzer, or to choose distance readout in M, CM or Feet.
  • Multiple display installation to be put it on dashboard, upside down upon mirror, or at the rear of the car.
  • Universal for Front and Rear
  • Brake activate or speed activate for front system
  • 12V/24V working voltage, support for bus, too
  • 25cm offset for spare tyre and tow bar, system will not alert within 25cm.
  • Corner sensor limit distance to 80cm, avoid false alarm on side obstacles
  • Thicker cables for stronger pull force
  • 15s faster response from obstacle to control box
  • Smart tracking detection for moving obstacles
  • Better level of anti-interference owing to better capacitor of wave filter and software
  • Adjustable range and sensitivity
  • Adjustable volume control for hidden speaker
  • Free of false alarm

front rear sensor DS1A

Product Specification

Model No.: CD01-4-S1A

1) Car Front & Rear 4 Parking Sensor System, fit for all passenger cars;

2) Fast response time from 0.12s to 0.2s;

3)Sensor detection range: 0cm~2.4m;

4) Display range: 30cm~2.4m;

5) Advanced self-diagnosis with error indication;

6) Working weather:-30℃ to +80℃;

7) 4*S1A single angle sensor, 16.5mm plastic flat, 2.5m cable with waterproof connector;

8) Precision accuracy: Free change during CM, M, and Feet;

9) DSP01 display, 2 Color LED 2 Channel w/ Buzzer built-in & Digital Readout; On board, upside down and upside down from mirror installation.

10) Power Input: 12~24V DC. Built-in resettable PTCs to protect the circuit.

Technical Specifications

Application  Front or Rear
Response time 0.15 seconds
Detection range 0-2.4m for large objects or walls
Detection for people 1.0 m smart detection for people
On screen display   CM/M/FT
Voltage  DC 12V-24V
Display installation  Front or upside down rear
Operating current  150mA
 Operating temperature -20 to +80 °C
Operating frequency  39.3 to 40.7 KHz
Sensor Horizontal detection angle  120 ° for horizontal, 60 ° for vertical
Display installation  Front or upside down rear
 Sensor Detection range  0cm-2.5m
 Buzzer sound volume  75-105 dB
 RF Frequency  433 MHz
 Sensor quantity 4 sensors
 Sensor cable  2.4m 64 braided pure copper cable, pull force>12KG
 Sensor Color  white, black and silver; customized color ≥200 set for one color
 Buzzer alert range 0-1.5m for rear, 0-80cm for front
 Display alert range 0-2.5m for rear,0-1.2m for front
Warranty 2 years
 Weight per set  0.65KG
Volume 0.042m³
OEM and ODM service available
Certificate ISO ,CE, RoHS, FCC,
Production ability 20000pcs/month
Payment 50% TT in advance, balance before shipment

Control box front front working details 限距和平移 display display installation PCB and connectors Sensor available Package shipment

FAQ and Trade Term:

Q1: What about quality warranty?

A1:2 years.

Q2: What is your MOQ?

A2: 100 pieces for each model. Sample is available.

Q3: When is the shipping date?

A3:1-10 working days upon your order of products.

Q4: What is Price Term?

A4: EXW, FOB Shenzhen, CIF.

Q5: How about Payment Term?

A5: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.

Q6: What’s your package?

A6: Our standard package is white box for unit set, carton for 10sets. Box Size: 26.5cmx19cmx6cm. Carton size: 41cmx34cmx30cm

Q7: What about shipment?

A7: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea

Q8: Do you offer OEM and ODM service?

A8: Yes, OEM and ODM service available. Both for parking sensor kit and for package.
