Solar Powered Car Tire Pressure Monitoring System 433Mhz Frequncy Real Time Alerts

Solar Tyre Pressure Monitoring System Sistema Sensor Tpms

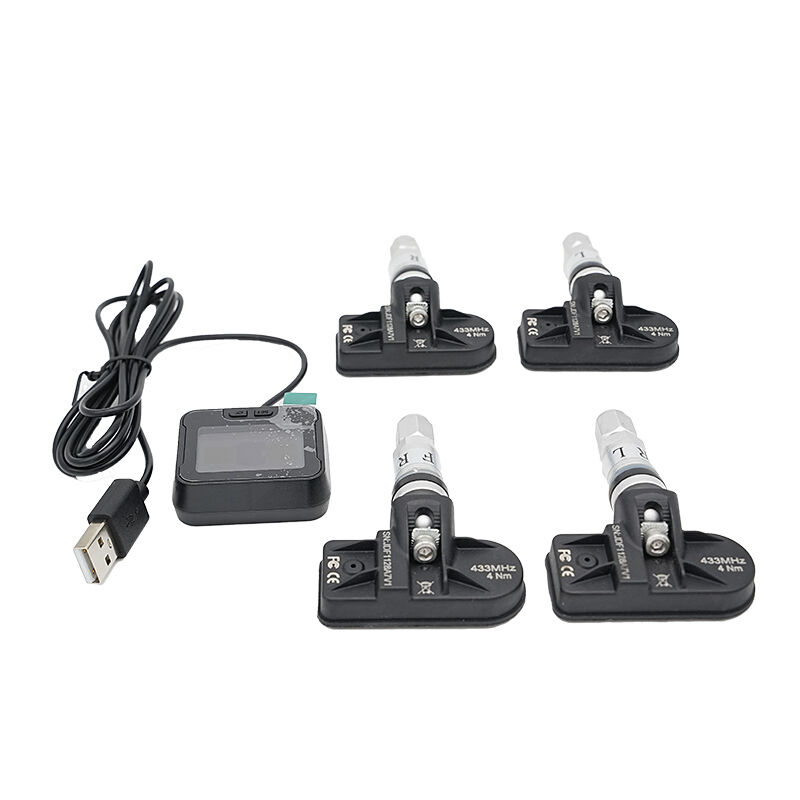

This universal solar-powered TPMS is designed to provide real-time monitoring of your tire pressure and temperature. It is similar to the steelmate TPMS system. The kit includes 4 high-precision internal sensors that are installed directly inside each tire to offer accurate and continuous pressure tracking.

Key Benefits

• Real-Time Alerts: The system detects significant pressure drops (typically 25% below recommended levels) and notifies you through sound alarms and LCD display warnings, helping prevent accidents and maintain vehicle performance.
• Enhanced Safety: By alerting you to low pressure, leaks, or punctures, the TPMS reduces the risk of tire blowouts.
• Fuel Efficiency & Tire Longevity: Properly maintained tire pressure improves fuel economy and extends tire lifespan.
• Solar-Powered Convenience: The system charges via solar energy, reducing the need for frequent battery replacements.

System Types

1. Internal Direct TPMS: Sensors are installed inside each tire, offering the most accurate readings.
2. External TPMS: Sensors attach to the valve stems for easy installation and portability.

Usage Instructions

When the LCD display or alarm alerts you to a pressure issue, immediately check your tires at a service station to ensure safe driving.

Features

• Internal sensors with 5 years lifespan
• 433Mhz frequncy
• Automatic matching, no need to change position
• Fast Date update within 4s
• Pressure range: 0-8Bar / 0-116PSI
• Sensor preset in factory
• Self-testing for each power on
• End users can set the threshold of tire pressure
• Convertible pressure unit (PSI / Bar)
• Sleeping mode available, Built-in G-sensor, can be wake up immediately when the car is moving
• Display with visual and audible warning for tire pressure and temperature
• From the car stop to start, Sensor can be wake up in 5s
• High-definition colorful LCD display, simultaneously show 4 tires pressure
• Mini USB charging slot without solar battery
• Display with visual and audible warning for tire pressure and temperature

Technique Specification for Sensor

Technique Specification for LCD Solar Display

Part detail

External sensors for optional. Battery lifespan is more than 1 year

FAQ

Q1: What is the frequency and application?

A1: Sensor frequency is 433Mhz. It used for aftermaket.

Q2: What's your package?
A2: Our standard package is carton for 20 sets. Gross wight is 11KG.

Q3: What is your MOQ?
A3: 100 sets.Sample is available.

Q4: Do you offer OEM and ODM service?
A4: Yes, OEM and ODM service available.

Q5: When is the lead time?
A5:1-10 working days upon your order of products.

Q6: What about quality warranty?
A6: 1 year.

Q7: What is Price Term?
A7: EXW. FOB Shenzhen, CIF accepted.

Q8: How about Payment Term?
A8: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.

Q9: What about shipment?
A9: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea

Q10: After-sales and Refund Policy?
A10: If there is any fault items, pls kindly send us proof, such as photo or video. We will try our best to solve this online first. If still cannot solve, pls send this back to us for repair. The new one will be send to you after problem confirmed.
