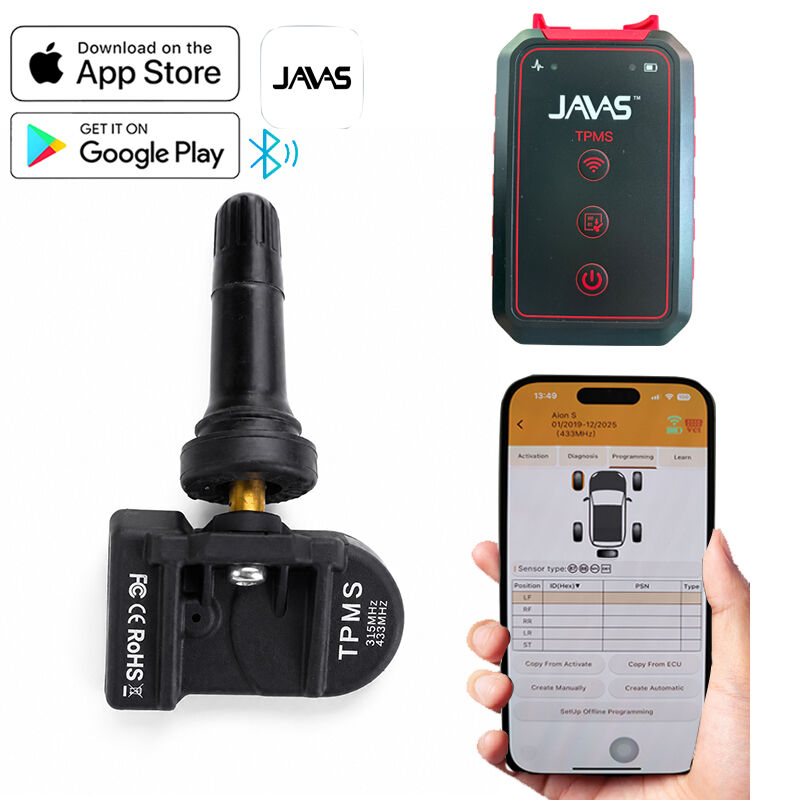

Rubber Valve Snap-in Uinversal Mx005r Tpms Tire Pressure Monitor Sensor
Keep your tires safe, your vehicle efficient, and maintenance costs low. Our snap in tire pressure sensor TS-D81
is a perfect replacement for OEM TPMS sensors and aftermarket needs, covering over 98% of vehicles worldwide.
Model: TS-D81
Product Parameter
| Operating temperature | -40 ° C~+125 ° C |
| Relative humidity | 45%~95% |
| Storage temperature range | -40 ° C ~+125 ° C |
| Working temperature | -40ºC~105ºC |
| Pressure range | 0-900Kpa |
| Installation position | automobile wheel hub |
| Quiescent current | 0.3μA≤I≤1.0μA |
| Emission current | 1.0mA ≤I≤3.5mA |
| Operating voltage | 2.90V≤U≤3.50V |
| Emission power | 8dBm |
| Weight | 35g |
| Service life | CR2050 more than 3 years |
| Waterproofing rate | IP67 |
| Transmitting power | <10dBm |
| Transmitting frequency | 433.92MHz&315MHz |
| Temperature error | 20~70 ° C : ±3 ° C, -40~-20ºC,70~125ºC :±5ºC |
| Pressure error | 0 ~50ºC :± 0.07bar, -40~0ºC , 50~85ºC :± 0.1bar |
![]()
![]()
![]()
Why It’s a Must-Have:
